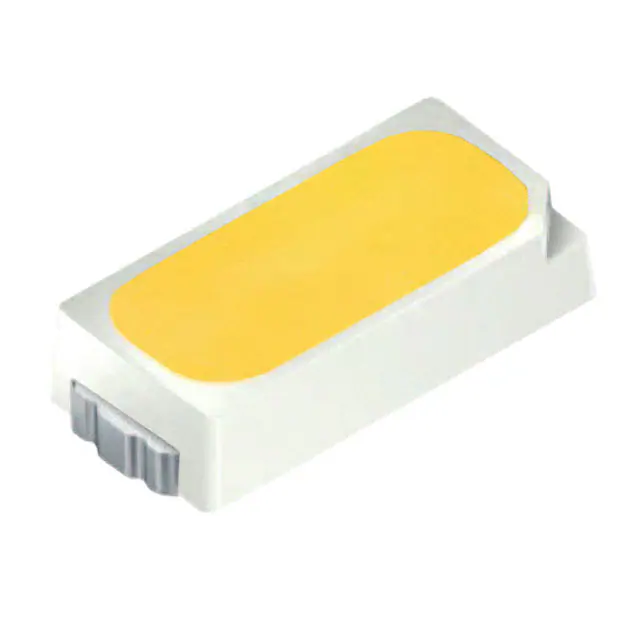

Osram DURIS E 3

DURIS® E, a mid-power LED portfolio from OSRAM Opto Semiconductors, is ideal for efficient and homogeneous lighting applications. An industrial standard footprint with the combination of a small/medium lumen package and a wide beam angle is perfect for uniform light distribution.

GW JCLPS2.EM (GEN 2, CRI 82, V1.1, 2019-10-16)

Applications

  • Area Lights
  • Downlights/Spotlights
  • Lamp Retrofits
  • Mood Lighting
  • Table Lamp

Features

  • Package: white SMT package, colored diffused silicone resin
  • Typ. Radiation: 120° (Lambertian emitter)
  • Color temperature: 2700K - 6500K
  • CRI: 80 (min.), 82 (typ.)
  • ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
  • Luminous Flux: typ. 32 lm @ 4000K
  • Luminous efficacy: typ. 171 lm/W @ 4000K
Type Color Temperature Luminous Flux (65mA) Order Code
GW JCLPS2.EM-H1H8-A838-1-2 2700 K 28.5 ... 40.5 lmQ65112A8480
GW JCLPS2.EM-H1H8-XX58-1-2 2700 K 28.5 ... 40.5 lmQ65112A8956
GW JCLPS2.EM-H2H8-A737-1-2 3000 K 30.0 ... 40.5 lmQ65112A8481
GW JCLPS2.EM-H2H8-XX57-1-2 3000 K 30.0 ... 40.5 lmQ65112A8955
GW JCLPS2.EM-H3H8-A636-1-2 3500 K 31.5 ... 40.5 lmQ65112A8482
GW JCLPS2.EM-H3H8-XX56-1-2 3500 K 31.5 ... 40.5 lmQ65112A8954
GW JCLPS2.EM-H3H8-A535-1-2 4000 K 31.5 ... 40.5 lmQ65112A8483
GW JCLPS2.EM-H3H8-XX55-1-2 4000 K 31.5 ... 40.5 lmQ65112A8953
GW JCLPS2.EM-H3H8-A333-1-2 5000 K 31.5 ... 40.5 lmQ65112A8484
GW JCLPS2.EM-H3H8-XX53-1-2 5000 K 31.5 ... 40.5 lmQ65112A8952
GW JCLPS2.EM-H3H8-A232-1-2 5700 K 31.5 ... 40.5 lmQ65112A8485
GW JCLPS2.EM-H3H8-XX52-1-2 5700 K 31.5 ... 40.5 lmQ65112A8966
GW JCLPS2.EM-H3H8-A131-1-2 6500 K 31.5 ... 40.5 lmQ65112A8486
GW JCLPS2.EM-H3H8-XX51-1-2 6500 K 31.5 ... 40.5 lmQ65112A8965
GW JCLPS2.EM (GEN 1, CRI 80, V1.1, 2016-06-09)

Applications

  • Linear lights including fluorescent replacement lamps
  • Area lights including troffer and panel lights
  • Signage e.g. channel letters
  • Industry applications e.g. white goods
  • Retrofit bulbs
  • Edge lighting (DURIS® E 3)
  • Architectural lighting
  • Accent & effect lighting
  • Horticulture lighting

Features

  • Footprint of 3.0 mm × 1.4 mm
  • Compact light source in cost-effective PLCC package
  • Stable brightness over lifetime
  • Viewing angle of 120° ideal for homogeneous linear light distribution
Type Color Temperature Luminous Flux (65mA) Order Code
GW JCLPS2.EM-GTHP-A838-1 2700 24 ... 30.4 Q65112A0421
GW JCLPS2.EM-GTHP-XX58-1 2700 24 ... 30.4 Q65112A0420
GW JCLPS2.EM-GUHQ-A737-1 3000 25.9 ... 33 Q65112A0418
GW JCLPS2.EM-GUHQ-XX57-1 3000 25.9 ... 33 Q65112A0416
GW JCLPS2.EM-GUHQ-A636-1 3500 25.9 ... 33 Q65112A0419
GW JCLPS2.EM-GUHQ-XX56-1 3500 25.9 ... 33 Q65112A0417
GW JCLPS2.EM-HPHR-A535-1 4000 28 ... 35.9 Q65112A0412
GW JCLPS2.EM-HPHR-XX55-1 4000 28 ... 35.9 Q65112A0408
GW JCLPS2.EM-HPHR-A333-1 5000 28 ... 35.9 Q65112A0413
GW JCLPS2.EM-HPHR-XX53-1 5000 28 ... 35.9 Q65112A0409
GW JCLPS2.EM-HPHR-A232-1 5700 28 ... 35.9 Q65112A0414
GW JCLPS2.EM-HPHR-XX52-1 5700 28 ... 35.9 Q65112A0410
GW JCLPS2.EM-HPHR-A131-1 6500 28 ... 35.9 Q65112A0415
GW JCLPS2.EM-HPHR-XX51-1 6500 28 ... 35.9 Q65112A0411
LCW JNSH.EC (obsolete, CRI 85, V1.0 & V2.0 & V2.2, 2015-06-09)
Type Color Temperature Luminous Flux (mcd @20mA) Order Code
LCW JNSH.EC-BRBT-5H7I-1 5000 2100 ... 2590Q65111A1685
LCW JNSH.EC-BQBS-5L7N-1 4000 1940 ... 2400Q65111A1963
LCW JNSH.EC-BRBT-5L7N-1 4000 2100 ... 2590Q65111A1674
LCW JNSH.EC-BQBS-5O8Q-1 3500 1940 ... 2400Q65111A2247
LCW JNSH.EC-BQBS-5R8T-1 3000 1940 ... 2400Q65111A1682
LCW JNSH.EC-BPBR-5U8X-1 2700 1800 ... 2240Q65111A1847
LCW JNSH.EC-BUCQ-5H7I-1 5000 2590 ... 3300Q65111A5766
LCW JNSH.EC-BTCP-5H7I-1 5000 2400 ... 3040Q65111A4631
LCW JNSH.EC-BUCQ-5L7N-1 4000 2590 ... 3300Q65111A5720
LCW JNSH.EC-BTCP-5L7N-1 4000 2400 ... 3040Q65111A4630
LCW JNSH.EC-BTCP-5O8Q-1 3500 2400 ... 3040Q65111A5856
LCW JNSH.EC-BSBU-5O8Q-1 3500 2240 ... 2800Q65111A3546
LCW JNSH.EC-BTCP-5R8T-1 3000 2400 ... 3040Q65111A4629
LCW JNSH.EC-BSBU-5R8T-1 3000 2240 ... 2800Q65111A3545
LCW JNSH.EC-BTCP-5U8X-1 2700 2400 ... 3040Q65111A5317
LCW JNSH.EC-BSBU-5U8X-1 2700 2240 ... 2800Q65111A4632
LCW JNSH.EC-BRBT-5U8X-1 2700 2100 ... 2590Q65111A3548
LCW JNSH.EC-BRBT-5YC8-1 2400 2100 ... 2590Q65111A8404
LCW JNSH.PC (obsolete, CRI 70, V1.1, 2012-02-15)
Type Color Temperature Luminous Flux (mcd @20mA) Order Code
LCW JNSH.PC-BSBU-5H7I-1 5000K 2240 ...2800Q65111A1663
LCW JNSH.PC-BSBU-5L7N-1 4000K 2240 ...2800Q65111A1662
LCW JNSH.PC-BRBT-5R8T-1 3000K 2110 ...2590Q65111A1666
LCW JNSH.PC-BUCQ-5H7I-1 5000K 2590 ...3300
LCW JNSH.PC-BUCQ-5L7N-1 4000K 2590 ...3300
LCW JNSH.PC-BTCP-5H7I-1 5000K 2400 ...3040
LCW JNSH.PC-BTCP-5L7N-1 4000K 2400 ...3040
LCW JNSH.PC-BTCP-5R8T-1 3000K 2400 ...3040
LCW JNSH.PC-BSBU-5R8T-1 3000K 2240 ...2800
LUW JNSH.EC (obsolete, CRI 80)
Type Color Temperature Luminous Flux (mcd @20mA) Order Code
LUW JNSH.EC-BUCQ-5C8E-1 6500 2590 ... 3300Q65111A5733
LUW JNSH.EC-BTCP-5C8E-1 6500 2400 ... 3040Q65111A4626
LUW JNSH.EC-BUCQ-5E8G-1 5700 2590 ... 3300Q65111A5732
LUW JNSH.EC-BTCP-5E8G-1 5700 2400 ... 3040Q65111A4625
LUW JNSH.EC-BRBT-5C8E-1 6500 2100 ... 2590Q65111A1095
LUW JNSH.PC (obsolete, CRI 70)
Type Color Temperature Luminous Flux (mcd @20mA) Order Code
LUW JNSH.PC-CPCR-5C8E-1 6500 2800 ... 3590Q65111A5731
LUW JNSH.PC-BUCQ-5C8E-1 6500 2590 ... 3300Q65111A4096
LUW JNSH.PC-CPCR-5E8G-1 5700 2800 ... 3590Q65111A5730
LUW JNSH.PC-BUCQ-5E8G-1 5700 2590 ... 3300Q65111A4624
